Active Desiccant
Dry Storage Cabinets
Safeguard moisture-sensitive surface mount devices against internal micro-cracking and delamination during solder reflow. Fully compliant with IPC/JEDEC J-STD-033 industry standards.
⚡ Why Choose Mekko Active Desiccant Cabinets:
Preventing Component Failure During Solder Reflow
When surface-mounted components absorb moisture from the environment and undergo high temperatures in solder reflow ovens, trapped moisture expands rapidly. This causes internal device stress, micro-cracking, delamination, and corrosion.
"Active Desiccant component drying and storage resets the 'floor life' clock safely and efficiently without the oxidation risks associated with traditional baking."
Our Dry Storage Cabinet Models
Engineered from compact table-top units to large multi-door industrial storage systems.

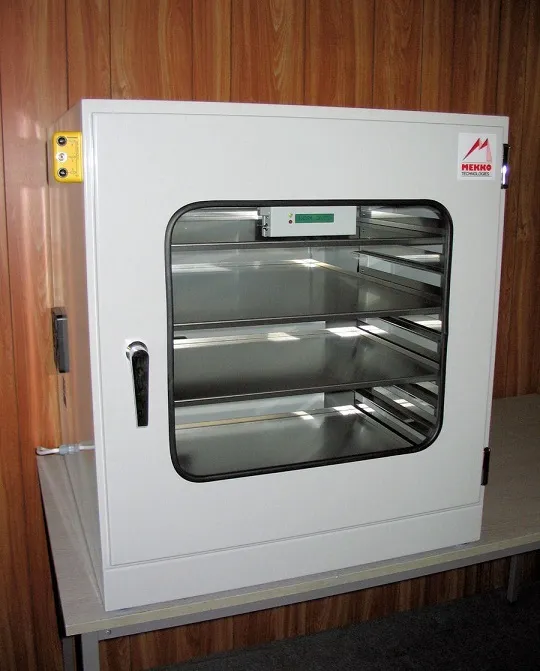

AD-101
Table-top cabinet ideal for compact workspace integration.
- Type: 1 Door, Table-top
- Capacity: ca. 250 litre
- Shelves: Max 10 sliding shelves
- Dimensions: 775(H) x 700(W) x 750(D)

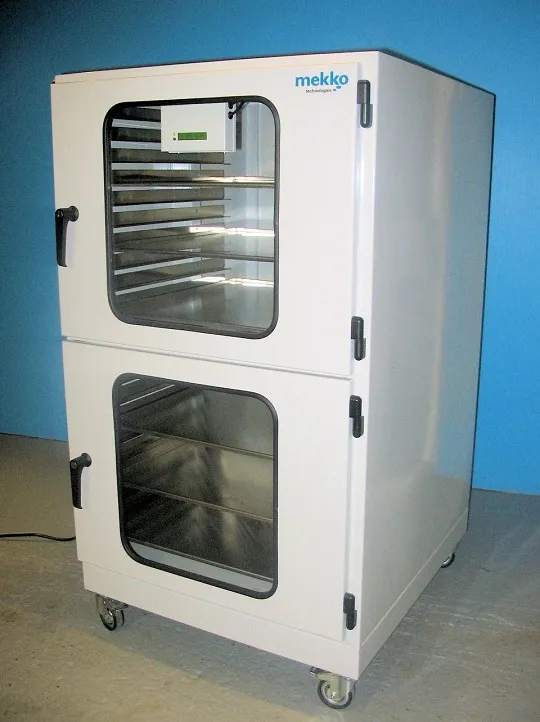

AD-202
Standard floor-standing unit with dual-door access.
- Type: 2 Doors, Floor standing
- Capacity: ca. 450 litre
- Shelves: Max 20 sliding shelves
- Dimensions: 1245(H) x 700(W) x 750(D)

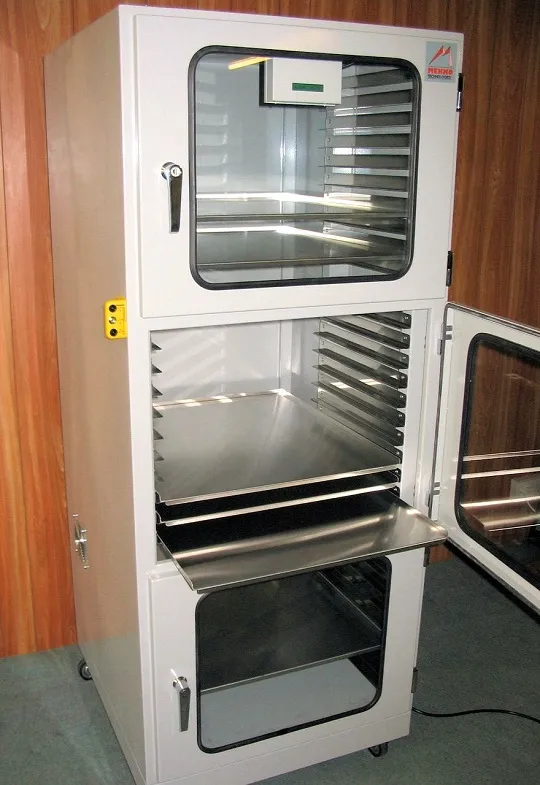

AD-303
High-capacity 3-door floor standing storage unit.
- Type: 3 Doors, Floor standing
- Capacity: ca. 750 litre
- Shelves: Max 30 sliding shelves
- Dimensions: 1770(H) x 700(W) x 750(D)

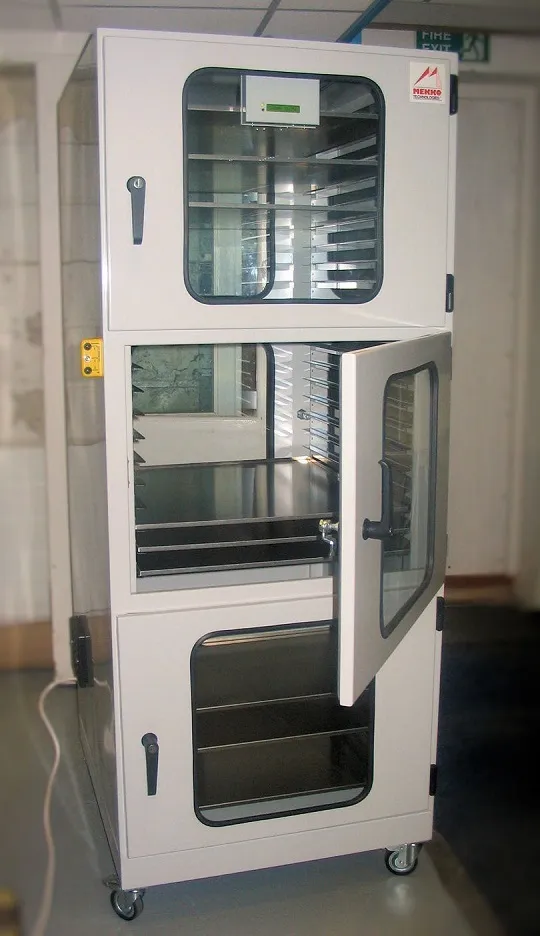

AD-305 (Pass-Thru)
Pass-through system with front and rear doors for production lines.
- Type: 5 Doors (3 front, 2 back)
- Capacity: ca. 750 litre
- Shelves: Max 30 sliding shelves
- Dimensions: 1770(H) x 700(W) x 750(D)

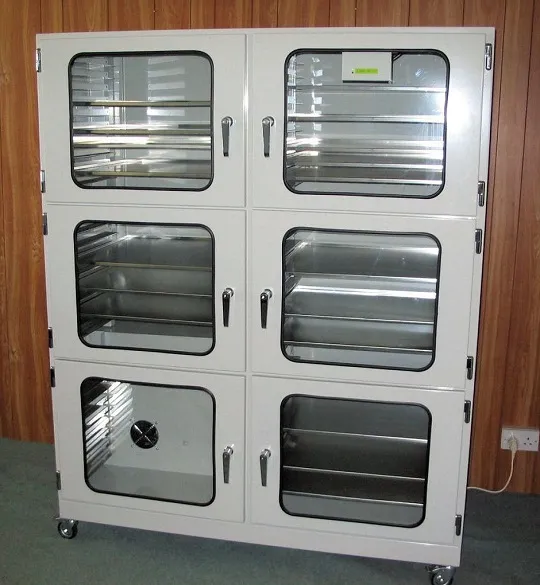

AD-606
Extra-large capacity 6-door floor standing industrial cabinet.
- Type: 6 Doors, Industrial
- Capacity: ca. 1300 litre
- Shelves: Max 60 sliding shelves
- Dimensions: 1770(H) x 1400(W) x 620(D)
Other Custom Options & Configurations
- Larger 6-door cabinet: AD-606XL (2100H x 1400W x 1150D)
- 4-door cabinet: AD-404 (1245H x 1400W x 750D)
- Convection heater for faster component/PCB drying
- Static dissipative (ESD) EVA mats & powder coating
- Locking doors & status light towers
- Audible alarms & safety monitoring
- Vertical tape reel racks
- Fixed stainless steel & telescopic shelves
- Pass-through systems with front and back doors
- Data recording software with real-time feedback
Need Help Choosing the Right Cabinet?
Speak directly with our technical team for custom configurations, quotes, or specifications. Call us on (+44 or 0)116 276 4242 or complete our contact form.
Frequently Asked Questions
What is the advantage of Mekko's high-accuracy humidity meter?▼
The humidity sensor probes used in our cabinets are extremely high-accuracy instruments, far superior to competitors. While most suppliers use probes with an accuracy of only +/-3%RH, our probes are calibrated against a factory working standard instrument calibrated by Rotronic in accordance with UKAS requirements. This results in an uncertainty of less than 1%RH at a displayed reading of 5%RH at 23°C.

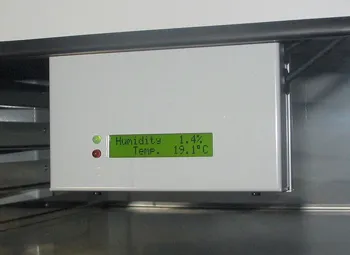

Mekko Technologies High-Accuracy Rotronic Calibrated Humidity Meter
Can I monitor cabinet performance in real time?▼
Yes. Our systems support real-time computer readouts and data logging, giving you continuous verification of internal humidity and temperature levels to ensure strict compliance with industrial storage standards.

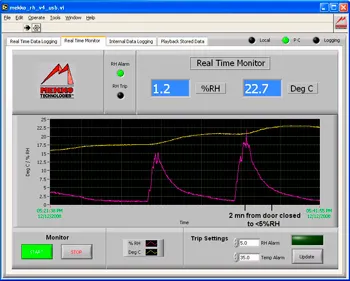

Real-time computer readout and data logging software for Mekko dry storage cabinets
How does the 'Active Desiccant' system work compared to baking or nitrogen?▼
Our cabinets incorporate our proprietary 'MTX-Flow' technology with a continually regenerating molecular sieve desiccant rotor. The unit automatically switches on when a door is opened and humidity rises, returning interior levels to under 5%RH in less than 2 minutes. It eliminates oxidation risks associated with baking and removes the ongoing consumable costs of nitrogen cabinets.

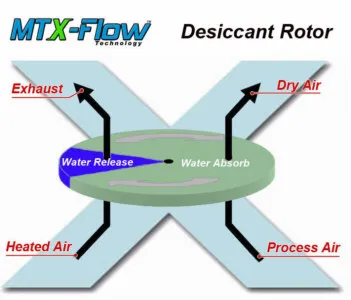

MTX-Flow Active Desiccant Dehumidifier System Diagram
What custom options and configurations are available?▼
We offer an extensive range of customisations including larger 6-door cabinets (AD-606XL = 2100H x 1400W x 1150D), 4-door units (AD-404), convection heaters for faster drying, static dissipative (ESD) EVA mats and powder coating, locking doors, vertical tape reel racks, telescopic sliding shelves, status light towers, audible alarms, and refrigerated or nitrogen variants.
