Conveyor Ovens for
Solder Reflow
Top quality, low cost, high performance solder reflow systems available in 250mm, 300mm, 350mm, and 450mm belt widths. Designed for reliable, trouble-free operation and exceptional energy efficiency.
⚡ Key Advantages of Mekko Reflow Ovens:
Advanced Thermal Uniformity for Lead-Free Soldering
Our ovens are divided into pre-heat, soak, and reflow zones along the length of the conveyor, combined with independent control zones across the width (front edge, centre, and back edge).
"Quick-response long-wave ceramic heater panels paired with hot air convection flow keep energy consumption exceptionally low while maintaining rigorous thermal stability."
Our Reflow Oven Lineup
Explore our comprehensive range of Euroflow PC-controlled systems and CR Omron-controlled ovens.

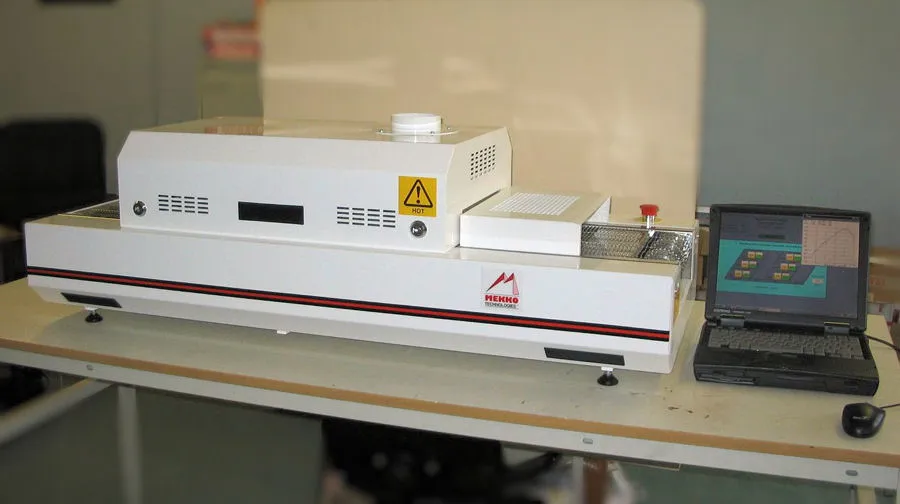

EuroFlow 250C
Advanced cross-belt temperature control with PC computer control system.
- Conveyor: 250mm wide conveyor
- Heating Zone: Heated length = 600mm + 300mm cooling zone
- Power Rating: Max 3.8kW | Avg 2.0kW

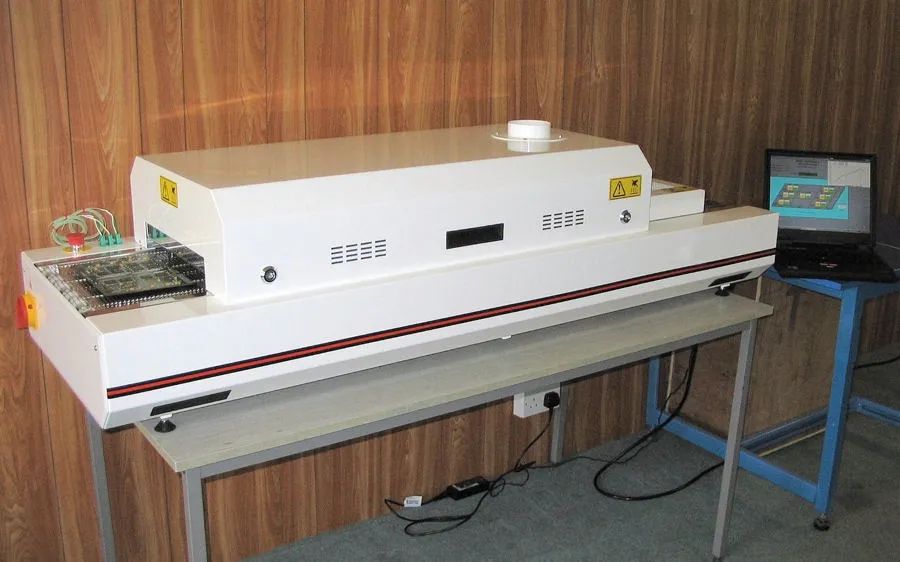

EuroFlow 300C
Mid-size precision reflow oven with cross-belt thermal uniformity.
- Conveyor: 300mm wide conveyor
- Heating Zone: Heated length = 900mm + 300mm cooling zone
- Power Rating: Max 5.7kW | Avg 3.0kW

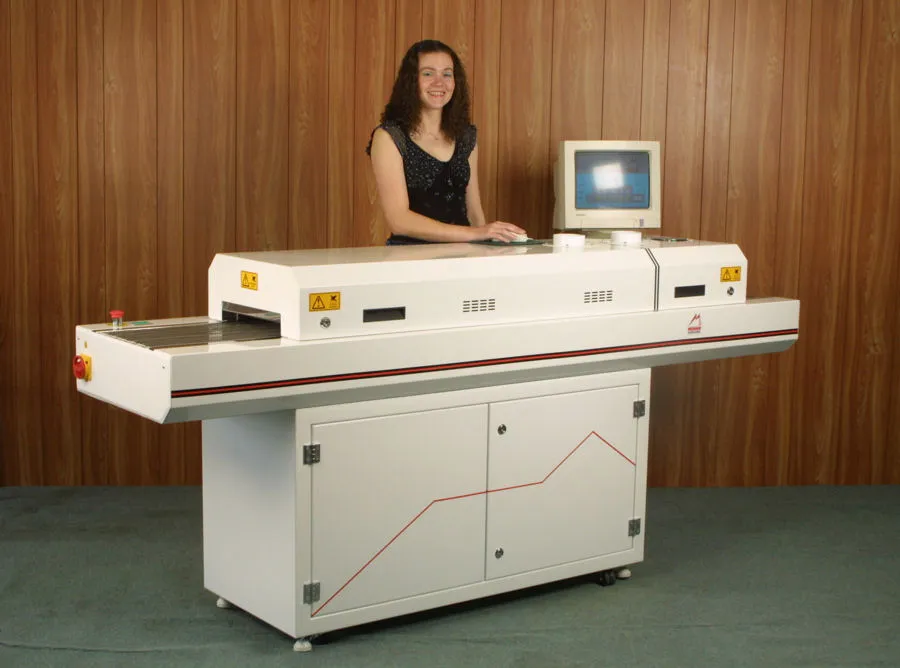

EuroFlow 350C
High-capacity production reflow oven with extended heating zone.
- Conveyor: 350mm wide conveyor
- Heating Zone: Heated length = 1,200mm + 600mm cooling zone
- Power Rating: Max 8kW | Avg 5kW

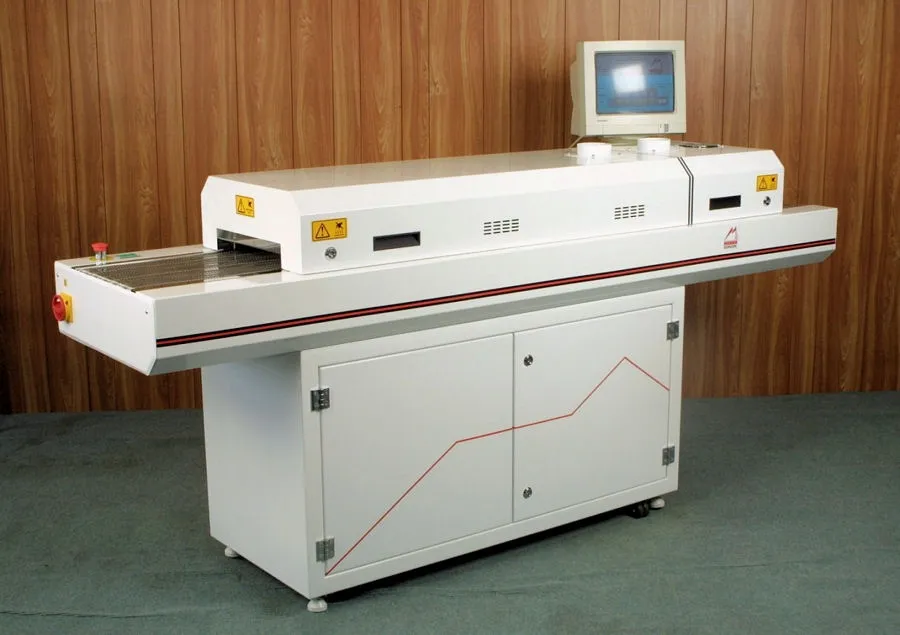

EuroFlow 450C
Maximum width production reflow oven for large PCB assemblies.
- Conveyor: 450mm wide conveyor
- Heating Zone: Heated length = 1,200mm + 600mm cooling zone
- Power Rating: Max 11kW | Avg 6kW

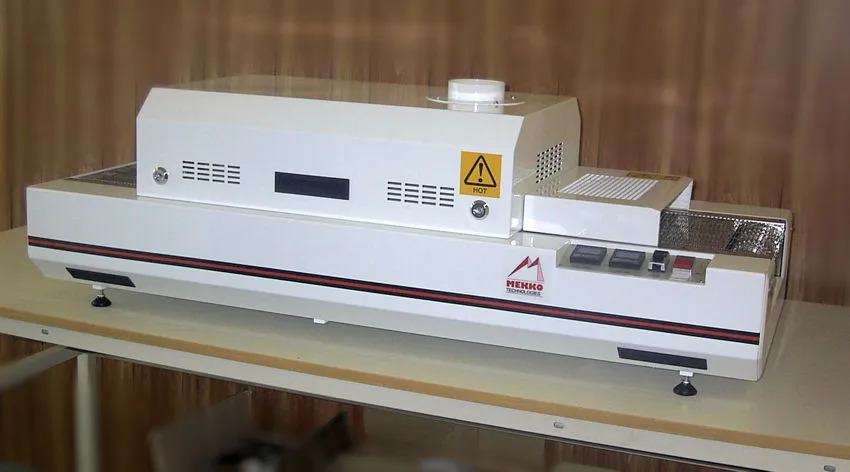

CR220
Equipped with 2 x Omron temperature controllers for reliable small-batch reflow.
- Conveyor: 250mm wide conveyor
- Heating Zone: Heated length = 600mm + 300mm cooling zone
- Power Rating: Max 2.4kW | Avg 1.5kW

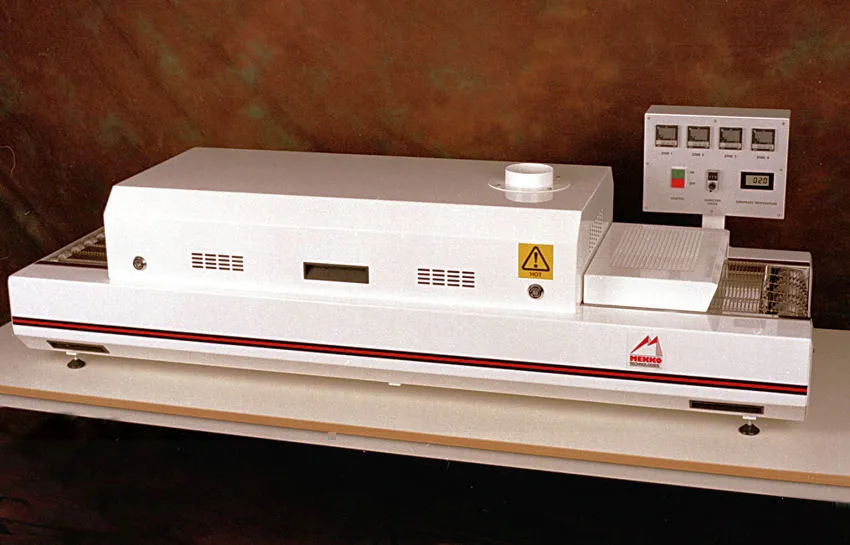

CR300
Fitted with 4 x Omron precision temperature controllers across zones.
- Conveyor: 300mm wide conveyor
- Heating Zone: Heated length = 900mm + 300mm cooling zone
- Power Rating: Max 4.2kW | Avg 2.5kW
CR300PC
Advanced variant of the CR300 upgraded with full PC computer control system.
- Conveyor: 300mm wide conveyor
- Heating Zone: Heated length = 900mm + 300mm cooling zone
- Power Rating: Max 4.2kW | Avg 2.5kW (PC Controlled)
Looking for the Right Reflow Solution?
Contact our engineering team directly to discuss your board dimensions, production throughput, and custom reflow requirements. Call (+44 or 0)116 276 4242.
Frequently Asked Questions
How does the Euroflow cross-belt control prevent lead-free soldering temperature variations?▼
The Euroflow design overcomes the most common challenge in lead-free soldering—varying temperature across the substrate. While the ovens are divided into pre-heat, soak, and reflow zones along the length, they also feature control zones across the conveyor (front edge, centre, and back edge). This lets operators completely eliminate temperature variation across the substrate.

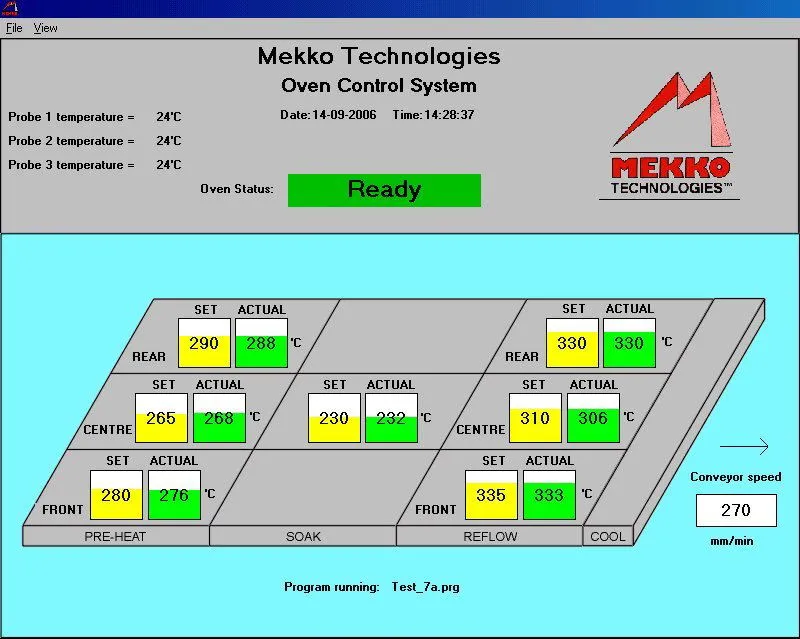

Euroflow Readout Screen
What type of heating technology is used in Mekko reflow ovens?▼
We use a highly efficient combination of quick-response, long-wave ceramic heater panels within the processing chamber alongside forced convection air flow. This delivers all-round edge-to-edge heating that is more efficient and controllable than pure convection systems, keeping power consumption low while ensuring excellent thermal stability.

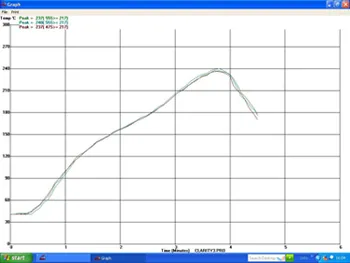

Euroflow Graphic Profile Readout
Can these ovens handle double-sided boards and complex BGA assemblies?▼
Yes. They provide safe processing for all SMD components, double-sided assemblies, BGA packages, fine-pitch ICs, and hidden chip components with zero shadowing or colour sensitivity.
Do I need complex profile changes for different production batches?▼
No. 'Single profile' processing is suitable for the majority of substrates. Full production runs or small batches can be run with no profile change or instability, and 'nose-to-tail' product loading is easily accommodated.
